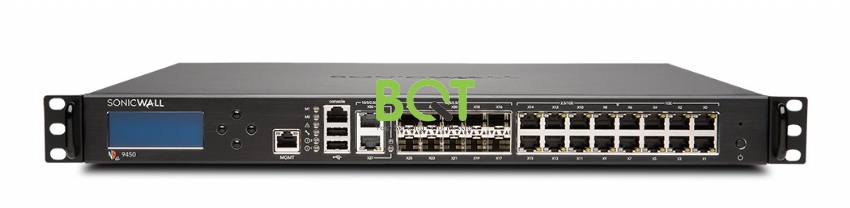

Tường lửa SonicWall NSA9450
Tường lửa SonicWall NSA9450
Liên Hệ
Tường lửa Firewall SonicWall NSA 9450:
● Firewall throughput 17.1 Gbps
● IPS throughput 10.2 Gbps
● Anti-malware throughput 8.0 Gbps
● Threat Prevention throughput 9.0 Gbps
Thông tin chi tiết
Tường lửa Firewall SonicWall NSA 9450 : The SonicWall NSa 9450 provide distributed enterprises and data centers with scalable, deep security at multi-gigabit speeds.● Firewall throughput 17.1 Gbps ● IPS throughput 10.2 Gbps ● Anti-malware throughput 8.0 Gbps ● Threat Prevention throughput 9.0 Gbps ● Maximum connections 10,000,000 ● New connections/sec 130,000/sec ● Storage modules 1 TB, 128 GB
| Firewall general | SonicWall NSa 9450 (01-SSC-1942) |
| Operating system | SonicOS 6.5.4 |
| Interfaces | 10 x 10-GbE SFP+, 2 x 10-GbE, 8 x 2.5-GbE, 8 x 1-GbE, 1 GbE Management, 1 Console |
| Expansion | 1 Expansion Slot (Rear)* |
| Built-in storage (SSD) | 1TB, 128 GB |
| Management | CLI, SSH, Web UI, GMS, REST APIs |
| SSO users | 90.000 |
| Maximum access points supported | 192 |
| Logging | Analyzer, Local Log, Syslog, IPFIX, NetFlow |
| Firewall/VPN Performance | NSa 9450 |
| Firewall inspection throughput1 | 17.1 Gbps |
| Threat Prevention throughput2 | 9.0 Gbps |
| Application inspection throughput2 | 10.8 Gbps |
| IPS throughput2 | 10.2 Gbps |
| Anti-malware inspection throughput2 | 8.0 Gbps |
| TLS/SSL decryption and inspection throughput (DPI SSL)2 | 2.1 Gbps |
| VPN throughput3 | 10.0 Gbps |
| Connections per second | 130,000/sec |
| Maximum connections (SPI) | 10,000,000 |
| Maximum connections (DPI) | 4,000,000 |
| Default/Maximum Connections (DPI SSL) | 450,000/290,000 |
| VPN | NSa 9450 |
| Site-to-site tunnels | 12.000 |
| IPSec VPN clients (max) | 2,000 (6,000) |
| SSL VPN NetExtender clients (max) | 2 (3,000) |
| Encryption/Authentication | DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography |
| Key exchange | Diffie Hellman Groups 1, 2, 5, 14v |
| Route-based | RIP, OSPF, BGP |
| Networking | NSa 9450 |
| IP address assignment | Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP Relay |
| NAT | modes 1:1, many:1, 1:many, flexible NAT (overlapping IPS), PAT, transparent mode |
| VLAN interfaces | 512 |
| Routing protocols | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
| QoS | Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p |
| Authentication | LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix,Common Access Card (CAC) |
| VoIP | Full H323-v1-5, SIP |
| Standards | TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Certifications (in progress) | ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL, USGv6, CsFC |
| Hardware | NSa 9450 |
| Power supply | Dual, redundant, 350W |
| Fans | Triple, Removable |
| Input power | 100-240 VAC, 50-60 Hz |
| Maximum power consumption (W) | 90.9 |
| MTBF @25ºC in hours | 134,9 |
| MTBF @25ºC in years | 15.4 |
| Form factor | 1U Rack Mountable |
| Dimensions | 16.9 x 16.3 x 1.8 in (43 x 41.5 x 4.5 cm) |
| Weight | 17.9 lb (8.1 kg) |
| WEEE weight | 22.5 lb (10.2 kg) |
| Shipping weight | 27.8 lb (12.6 kg) |
| Major regulatory | FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI |
| Environment (Operating/Storage) | 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C) |
| Humidity | 10-90% non-condensing |
