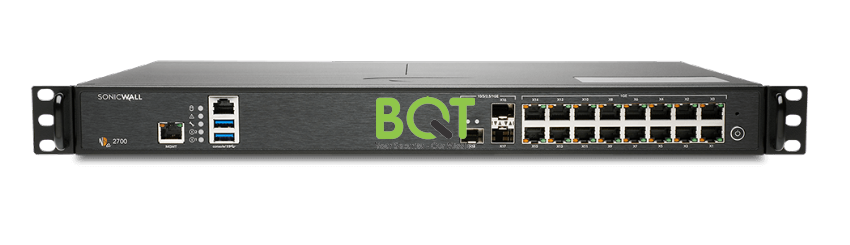

Tường lửa SonicWall NSA2700
Tường lửa SonicWall NSA2700
Liên Hệ
● Interfaces 16x1GbE, 3x10G SFP+, 2 USB 3.0,1 Console, 1 Management port
● Firewall inspection throughput 5.5 Gbps
● Threat prevention throughput 3.0 Gbps
● Application inspection throughput 3.6 Gbps
● IPS throughput 3.4 Gbps
● Anti-malware inspection throughput 2.9 Gbps
Thông tin chi tiết
Tường lửa Firewall SonicWall NSA 2700
● Interfaces 16x1GbE, 3x10G SFP+, 2 USB 3.0,1 Console, 1 Management port
● Firewall inspection throughput 5.5 Gbps
● Threat prevention throughput 3.0 Gbps
● Application inspection throughput 3.6 Gbps
● IPS throughput 3.4 Gbps
● Anti-malware inspection throughput 2.9 Gbps
| FIREWALL GENERAL | SonicWall NSa 2700 |
| Operating system | SonicOS 7.0 |
| Interfaces | 16x1GbE, 3x10G SFP+, 2 USB 3.0, 1 Console, 1 Management port |
| Storage | 64GB M.2 |
| Expansion | Storage Expansion Slot (Up to 256GB) |
| VLAN interfaces | 256 |
| Access points supported (maximum) | 32 |
| FIREWALL/VPN PERFORMANCE | NSa 2700 |
| Firewall inspection throughput1 | 5.5 Gbps |
| Threat prevention throughput2 | 3.0 Gbps |
| Application inspection throughput2 | 3.6 Gbps |
| IPS throughput2 | 3.4 Gbps |
| Anti-malware inspection throughput2 | 2.9 Gbps |
| TLS/SSL inspection and decryption throughput (DPI SSL)2 | 800 Mbps |
| IPSec VPN throughput3 | 2.10 Gbps |
| Connections per second | 21,500 |
| Maximum connections (DPI) | 500,000 |
| VPN | NSa 2700 |
| Site-to-site VPN tunnels | 250 |
| Encryption/authentication | DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography |
| Key exchange | Diffie Hellman Groups 1, 2, 5, 14v |
| Route-based VPN | RIP, OSPF, BGP |
| Certificate support | Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP |
| VPN features | Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN |
| Global VPN client platforms supported | Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10 |
| NetExtender | Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE |
| Mobile Connect | Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded) |
| SECURITY SERVICES | NSa 2700 |
| Deep Packet Inspection services | Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL |
| Content Filtering Service (CFS) | HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists |
| Comprehensive Anti-Spam Service | Supported |
| Application Visualization | Yes |
| Application Control | Yes |
| Capture Advanced Threat Protection | Yes |
| NETWORKING | NSa 2700 |
| IP address assignment | Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay |
| NAT modes | 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode |
| Routing protocols | BGP4, OSPF, RIPv1/v2, static routes, policy-based routing |
| QoS | Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) |
| Authentication | LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) |
| Local user database | 250 |
| VoIP | Full H323-v1-5, SIP |
| Standards | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Certifications pending | FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS) |
| Common Access Card (CAC) | Supported |
| High availability | Active/Active with stateful synchronization |
| HARDWARE | NSa 2700 |
| Form factor | 1U Rack Mountable |
| Power supply | 60W |
| Maximum power consumption (W) | 21,5 |
| Input power | 100-240 VAC, 50-60 Hz |
| Total heat dissipation | 73.32 BTU |
| Dimensions | 43 x 32.5 x 4.5 (cm) 16.9 x 12.8 x 1.8 in |
| Weight | 4.0 kg / 8.8 lbs |
| WEEE weight | 4.2 kg / 9.3 lbs |
| Shipping weight | 6.4 kg / 14.1 lbs |
| Environment (Operating/Storage) | 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C) |
| Humidity | 5-95% non-condensing |
