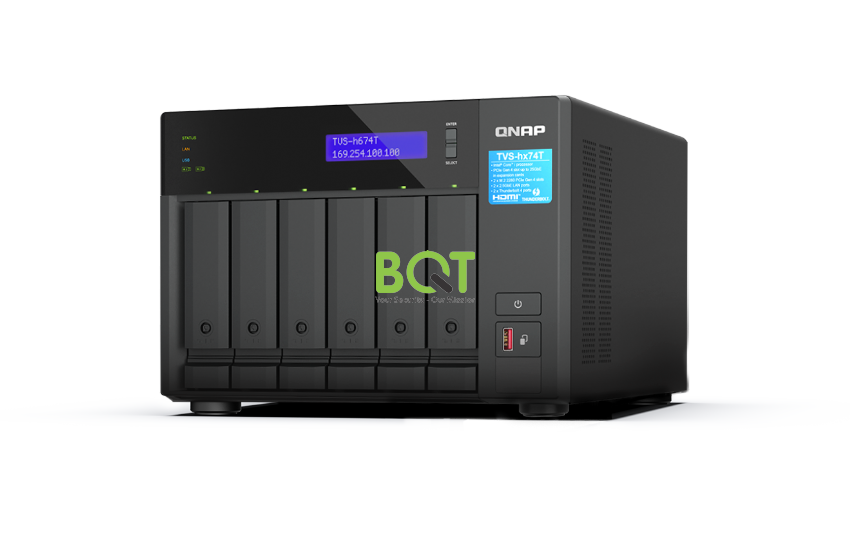

Qnap TVS-h674T-i5-32G
Qnap TVS-h674T-i5-32G
Thiết bị lưu trữ Qnap TVS-h674T-i5-32G
6-bay QuTS hero NAS, Intel Core i5-12400 6-core/12-thread, up to 4.6GHz, 32GB SO-DIMM DDR4(max.64GB), 6 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, 2 x Thunderbolt 4, PCIe Gen4 slots, HDMI 1.4b, 350W PSU
Thông tin chi tiết
Thiết bị lưu trữ Qnap TVS-h674T-i5-32G
6-bay QuTS hero NAS, Intel Core i5-12400 6-core/12-thread, up to 4.6GHz, 32GB SO-DIMM DDR4(max.64GB), 6 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, 2 x Thunderbolt 4, PCIe Gen4 slots, HDMI 1.4b, 350W PSU
Thông số kỹ thuật:
| CPU | Intel® Core™ i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics 730 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 32 GB SODIMM DDR4 (2 x 16 GB) |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 4 x4 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| Thunderbolt Port | 2 (Thunderbolt™ 4) |
| PCIe Slot | 2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 *Slot 2 is preinstalled with a Thunderbolt 4 AIC. |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-6, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 180.2 × 264.3 × 279.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 6.36 kg |
| Weight (Gross) | 7.93 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Minimum 250W PSU, 100-240VAC |
