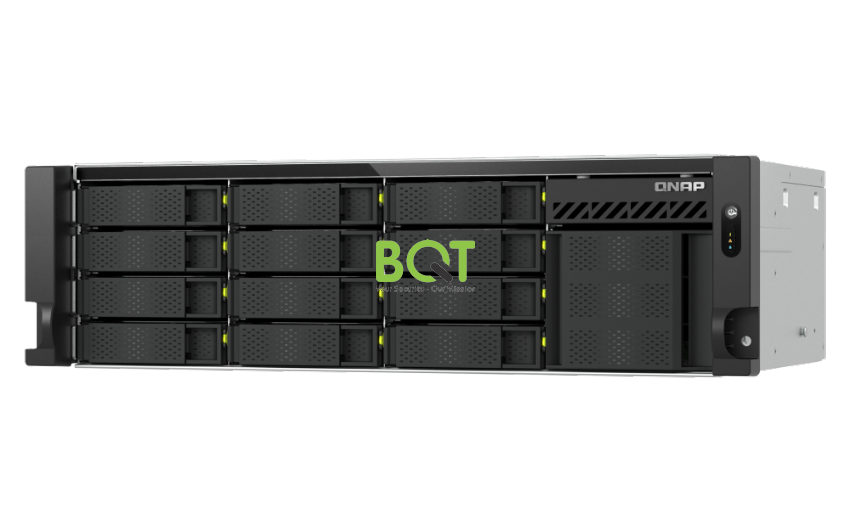

TS-h1655XeU-RP-8G
TS-h1655XeU-RP-8G
TS-h1655XeU-RP-8G
CPU: Intel ® Atom® C5125 8-core processor, 2.8GHz
RAM: 8 GB non-ECC SODIMM DDR4 (1 x 8 GB)_Maximum: 64GB
HDD: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x E1.S/M.2 PCIe Gen3 x2 slots
Network: 2 x 2.5G + 1 x 10GBASE-T
M.2 slot: 4 x M.2 2280 (PCIe Gen 3 x 2)
Power: Minimum 300W (x2) PSU, 100-240VAC
Thông tin chi tiết
Thiết bị lưu trữ QNAP TS-h1655XeU-RP-8G
CPU: Intel ® Atom® C5125 8-core processor, 2.8GHz
RAM: 8 GB non-ECC SODIMM DDR4 (1 x 8 GB)_Maximum: 64GB
HDD: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x E1.S/M.2 PCIe Gen3 x2 slots
Network: 2 x 2.5G + 1 x 10GBASE-T
M.2 slot: 4 x M.2 2280 (PCIe Gen 3 x 2)
Power: Minimum 300W (x2) PSU, 100-240VAC
| CPU | Intel ® Atom® C5125 8-core processor, 2.8GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 8 GB non-ECC SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x E1.S/M.2 PCIe Gen3 x2 slots
The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives E1.S SSD M.2 PCIe 2280 SSD |
| Hot-swappable | |
| M.2 Slot | 4 x M.2 2280 (PCIe Gen 3 x 2)
Supported by E1.S slots with M.2 adapter |
| SSD Cache Acceleration Support | |
| SR-IOV | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T |
| 25 Gigabit Ethernet Port | Optional via a network adapter |
| Wake on LAN (WOL) |
Only the 2.5GbE port |
| Jumbo Frame | |
| PCIe Slot | 2 x PCIe Gen3 (x4) Slot 1: PCIe Gen 3 (x4) Slot 2: PCIe Gen 3 (x4) Card dimensions for PCIe slot 1: 77 x 20 x 220 mm ( H x W x D) |
| USB 3.2 Gen 1 port | 2 |
| HDMI™ Output | Optional via a PCIe graphics card |
| Form Factor | 3U Short Depth Rackmount |
| LED Indicators | HDD 1-12, SSD 1~4, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 133 × 432.4 × 297 mm |
| Weight (Net) | 10.77 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Minimum 300W (x2) PSU, 100-240VAC |
