QAI-h1290FX-7302P-128G
QAI-h1290FX-7302P-128G
Liên Hệ
QAI-h1290FX-7302P-128G
- CPU: AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
- RAM: 128 GB RDIMM DDR4 ECC
- HDD: 12 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
- Network: 2 x 2.5G + 2 x 25GbE SFP28 SmartNIC port
- Power: 750W, 100-240V
Thông tin chi tiết

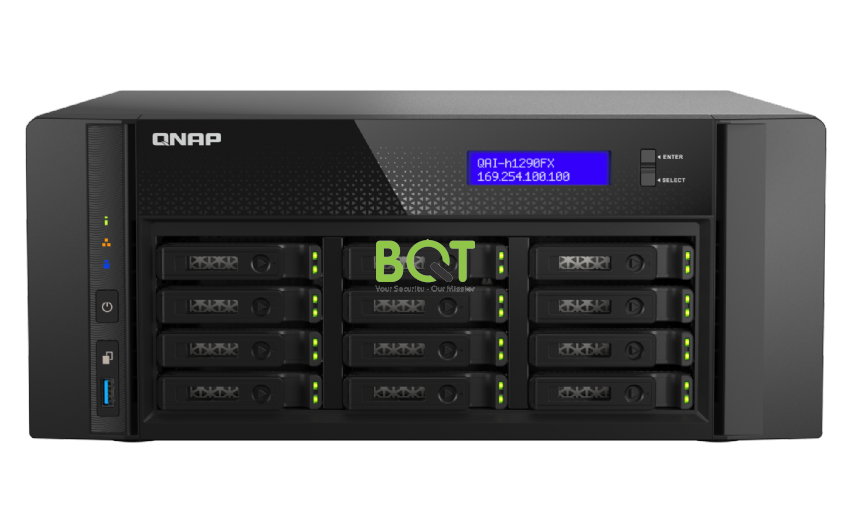

Thiết bị lưu trữ QNAP QAI-h1290FX-7302P-128G
- CPU: AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
- RAM: 128 GB RDIMM DDR4 ECC
- HDD: 12 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
- Network: 2 x 2.5G + 2 x 25GbE SFP28 SmartNIC port
- Power: 750W, 100-240V
Thông số kỹ thuật:
QAI-h1290FX-7302P-128G
| CPU | AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | (AES-NI) |
| System Memory | 128 GB RDIMM DDR4 ECC |
| Maximum Memory | 1 TB (8 x 128 GB) |
| Memory Slot | 8 x RDIMM DDR4 |
| Drive Bay | 12 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
The system is shipped without SSD.
For the SSD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 2.5-inch bays: 2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| SR-IOV | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame | |
| PCIe Slot | 4 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x16 Slot 3: PCIe Gen 4 x8 Slot 4: PCIe Gen 4 x16 Card dimensions for PCIe slot 1 & Slot 2：185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches.
Card dimensions for PCIe slot 3 & Slot 4：280 x 111.15 x 18.76 mm / 11.02 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, SSD1-12 |
| LCD Display/ Button | |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 150 × 368 × 362 mm
Dimensions do not include foot pad (foot pad may be up to 10mm / 0.39 inches high depending on model)
|
| Weight (Net) | 10.4 kg |
| Weight (Gross) | 11.3 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 750W, 100-240V |
