TS-h2477AXU-RP-R7-32G
TS-h2477AXU-RP-R7-32G
TS-h2477AXU-RP-R7-32G
CPU: AMD Ryzen™ 7 Pro 7000 series 8-core/16-thread processor, burst up to 5.3 GHz
RAM: 32 GB UDIMM DDR5 (1x 32 GB)_Maximum: 192GB
HDD: 24 x 3.5-inch SATA 6Gb/s, 3Gb/s
M.2 slot: 2 x M.2 2280 PCIe Gen 5 x2 slots
Network: 2 x 2.5G + 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Power: 800W(x2), 100-240V
Thông tin chi tiết

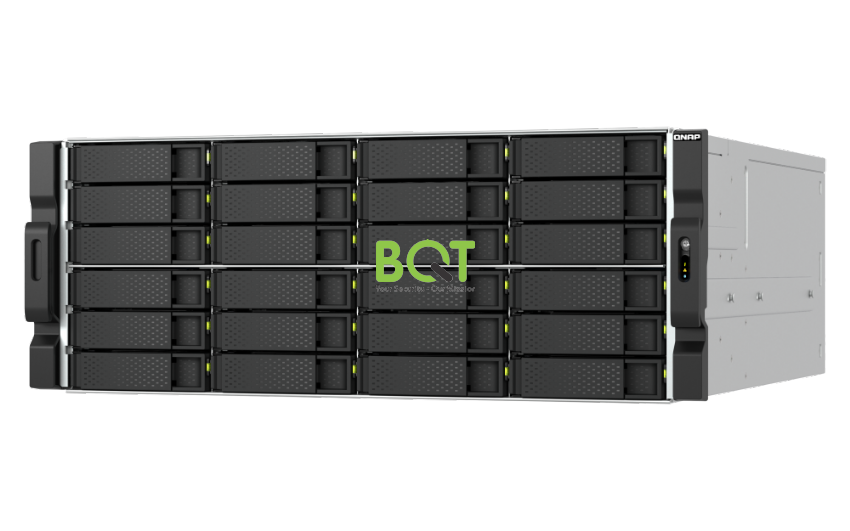

Thiết bị lưu trữ QNAP TS-h2477AXU-RP-R7-32G
CPU: AMD Ryzen™ 7 Pro 7000 series 8-core/16-thread processor, burst up to 5.3 GHz
RAM: 32 GB UDIMM DDR5 (1x 32 GB)_Maximum: 192GB
HDD: 24 x 3.5-inch SATA 6Gb/s, 3Gb/s
M.2 slot: 2 x M.2 2280 PCIe Gen 5 x2 slots
Network: 2 x 2.5G + 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Power: 800W(x2), 100-240V
| CPU | AMD Ryzen™ 7 Pro 7000 series 8-core/16-thread processor, burst up to 5.3 GHz
AMD Radeon Graphics |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | AMD Radeon™ Graphics |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 32 GB UDIMM DDR5 (1x 32 GB) |
| Maximum Memory | 192 GB (4 x 48 GB) |
| Memory Slot | 4 x UDIMM DDR5 Support optional ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 24 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 5 x2 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 4 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use. |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 4U Rackmount |
| LED Indicators | Power Status, HDD 1-24, M.2 SSD 1-2, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 800W(x2), 100-240V |
