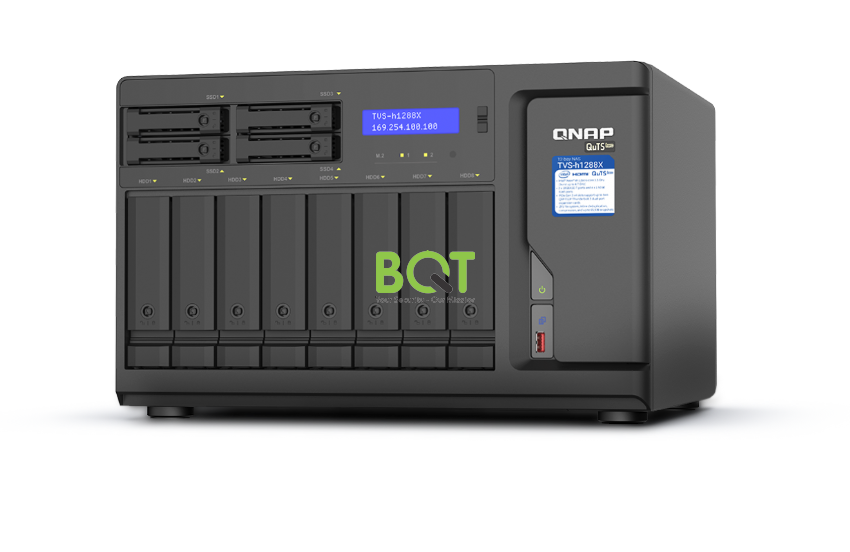

Thiết bị lưu trữ QNAP TVS-h1288X-W1250-16G
12-Bay TurboNAS (8 x 3.5" HDD + 4 x 2.5" SSD), SATA 6G, Intel Xeon W-1250 6 cores 12 threads 3.3 GHz (boost up to 4.7 GHz), 16GB DDR4 ECC RAM (max. 128GB),
4 x 2.5GbE, 2 x 10GBASE-T 10GbE, 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 SSD slots for SSD cache, optional QNAP QXP-T32P 2-port Thunderbolt 3 card support, 3 x PCIe expansion slots (pre-installed 2-port 10GBASE-T card), integrated graphics, 4K HDMI v1.4b, USB 3.2 Gen2, 550W single power supply
Thông tin chi tiết
Thiết bị lưu trữ QNAP TVS-h1288X-W1250-16G
12-Bay TurboNAS (8 x 3.5" HDD + 4 x 2.5" SSD), SATA 6G, Intel Xeon W-1250 6 cores 12 threads 3.3 GHz (boost up to 4.7 GHz), 16GB DDR4 ECC RAM (max. 128GB),
4 x 2.5GbE, 2 x 10GBASE-T 10GbE, 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 SSD slots for SSD cache, optional QNAP QXP-T32P 2-port Thunderbolt 3 card support, 3 x PCIe expansion slots (pre-installed 2-port 10GB
Thông số kỹ thuật:
| CPU | Intel® Xeon® W-1250 6-core/12-thread processor, up to 4.7 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics P630 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 16 GB ECC UDIMM DDR4 (2 x 8 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 Slot | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/1G) |
| 25 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) |
Only the 2.5GbE port |
| Jumbo Frame | |
| Thunderbolt Port | Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter |
| PCIe Slot | 3 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4 *Slot 1 is preinstalled with a 2-port 10GbE network adapter. |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C 3 x Type-A |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Audio Input | - (No longer available on units manufactured on or after 2021/1/1) |
| Audio Output | - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1) |
| Form Factor | Tower |
| LED Indicators | System status, LAN, USB, Disk 1~12, M.2 SSD 1~2 |
| LCD Display/ Button | |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 225.2 × 369.9 × 319.8 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 13.29 kg |
| Weight (Gross) | 14.7 kg |
| Operating Temperature | 0 - 40°C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W PSU, 100~240V |
