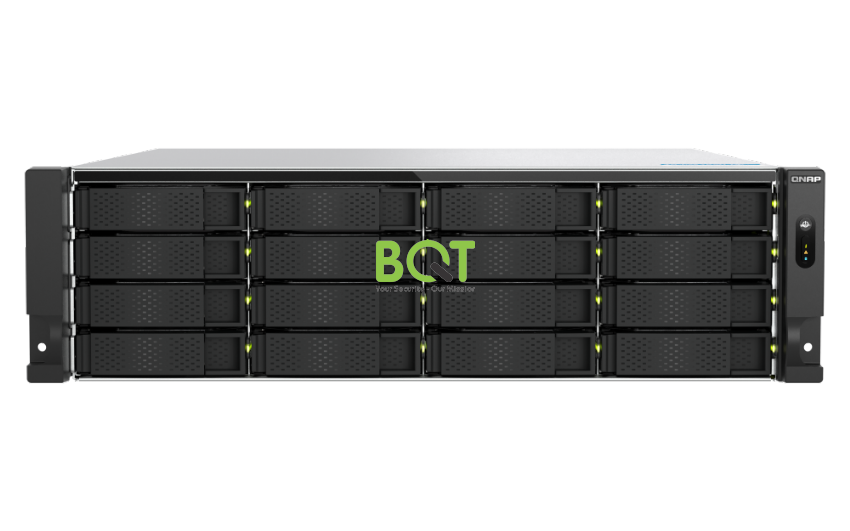

Qnap TS-h1677AXU-RP-R7-32G

Qnap TS-h1677AXU-RP-R7-32G

Liên Hệ

Thiết bị lưu trữ Qnap TS-h1677AXU-RP-R7-32G

CPU: AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz

RAM: 32 GB UDIMM DDR5 (1x 32 GB)_Maximum: 128GB

HDD: Support 16 x 3.5-inch SATA 6Gb/s, 3Gb/s, 2 x M.2 2280 PCIe Gen 5 x2 slots

Network: 2 x 2.5G + 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)

Power: 550W(x2), 100-240V

Thông tin chi tiết

Thiết bị lưu trữ Qnap TS-h1677AXU-RP-R7-32G

CPU: AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz

RAM: 32 GB UDIMM DDR5 (1x 32 GB)_Maximum: 128GB

HDD: Support 16 x 3.5-inch SATA 6Gb/s, 3Gb/s, 2 x M.2 2280 PCIe Gen 5 x2 slots

Network: 2 x 2.5G + 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)

Power: 550W(x2), 100-240V



Thông số kỹ thuật: Qnap TS-h1677AXU-RP-R7-32G

CPU AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz

AMD Radeon Graphics

CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding
System Memory 32 GB UDIMM DDR5 (1x 32 GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x UDIMM DDR5
Support optional ECC memory
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot 2 x M.2 2280 PCIe Gen 5 x2 slots

Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.

SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)

Jumbo Frame
PCIe Slot 3
Slot 1: Gen 4 x 4
Slot 2: Gen 4 x 8 or Gen 4 x 4*
Slot 3: Gen 4 x 4

*Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use.

USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 3U Rackmount
LED Indicators Power Status, HDD 1-16, M.2 SSD 1-2, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 131.3 × 482.2 × 550.8 mm

Excludes ear hook and the protruding part of the Power Supply Unit.

Weight (Net) 15.64 kg
Weight (Gross) 22.08 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 550W(x2), 100-240V
