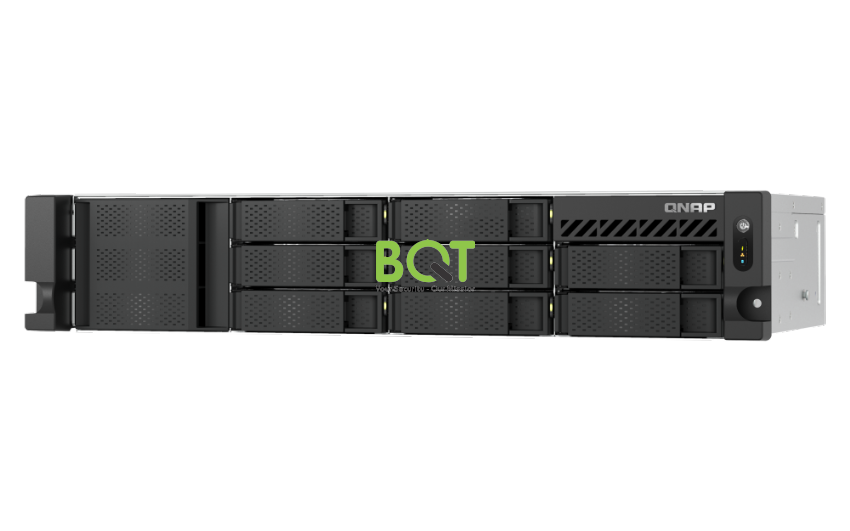

Qnap TS-855eU-RP-8G
Qnap TS-855eU-RP-8G
Thiết bị lưu trữ Qnap TS-855eU-RP-8G
8-bay short depth rackmount NAS, Intel Atom C5125 8C 2.8GHz, 8GB RAM,2 x 2.5GbE, 2 x M.2 2280, 2 x PCIe Gen3 x4, 4 x USB 3.2 Gen1 ports (5Gbps), 2 x 300W redundant PSU
Thông tin chi tiết
Thiết bị lưu trữ Qnap TS-855eU-RP-8G
8-bay short depth rackmount NAS, Intel Atom C5125 8C 2.8GHz, 8GB RAM,2 x 2.5GbE, 2 x M.2 2280, 2 x PCIe Gen3 x4, 4 x USB 3.2 Gen1 ports (5Gbps), 2 x 300W redundant PSU
Thông số kỹ thuật:
| CPU | Intel ® Atom® C5125 8-core processor, 2.8GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 8 GB non-ECC SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 Slot | 2 x M.2 2280 (PCIe Gen 3 x 4)
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. |
| SSD Cache Acceleration Support | |
| SR-IOV | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
| 10 Gigabit Ethernet Port | Optional via a network adapter |
| 25 Gigabit Ethernet Port | Optional via a network adapter |
| Wake on LAN (WOL) |
Only the 2.5GbE port |
| Jumbo Frame | |
| PCIe Slot | 2 x PCIe Gen3 (x4) Slot 1: PCIe Gen 3 (x4) Slot 2: PCIe Gen 3 (x4) Card dimensions for PCIe slot 1：97 x 68.9x 18.76 mm / 3.82 x 2.71 x 0.74 inches. |
| USB 3.2 Gen 1 port | 4 |
| HDMI™ Output | Optional via a PCIe graphics card |
| Form Factor | 2U Short Depth Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 297.4 mm |
| Weight (Net) | 9.47 kg |
| Weight (Gross) | 10.94 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Minimum 2 x 300W PSU, 100-240VAC |
