Qnap TS-2477XU-RP-2700-16G
Qnap TS-2477XU-RP-2700-16G
Liên Hệ

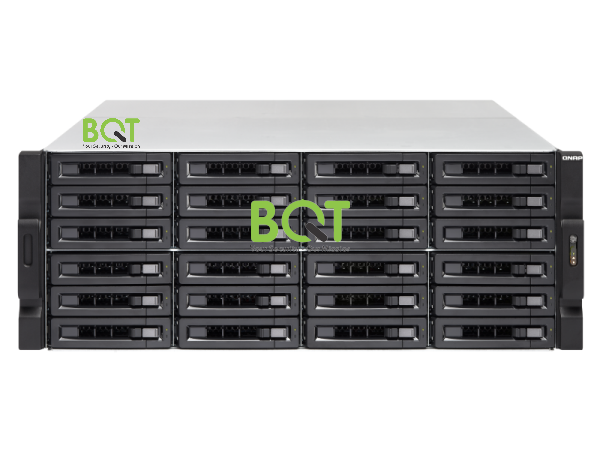

Thiết bị QNAP TS-2477XU-RP-2700-16G
- AMD Ryzen 7 2700 8-core 3.2 GHz processor, Turbo Core 4.1 GHz
- 16 GB UDIMM DDR4 (2 x 8GB)
- 24 x 3.5-inch SATA 6Gb/s, 3Gb/s
- 2 x 10GbE SFP+ SmartNIC port
Thông tin chi tiết
Thiết bị Qnap TS-2477XU-RP-2700-16G
THÔNG SỐ KỸ THUẬT THIẾT BỊ LƯU TRỮ QNAP TS-2477XU-RP-2700-16G
| NAS | |
| CPU | AMD Ryzen 7 2700 8-core 3.2 GHz processor, Turbo Core 4.1 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| System Memory | 16 GB UDIMM DDR4 (2 x 8GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x Long-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bays | 24 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch/2.5-inch SATA HDD ,2.5-inch SATA SSD |
| Drives Hot-swappable | Yes |
| SSD Cache Acceleration Support | Yes |
| 1GbE Port (RJ45) | 2 |
| 10GbE Port | 2 x 10GbE SFP+ SmartNIC port |
| Jumbo Frame | Yes |
| PCIe Slots | 4, Slot 1: PCIe Gen 3 x4, Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4*, Slot 3: PCIe Gen 3×8 or PCIe Gen 3 x4**, Slot 4: PCIe Gen 3 x4 |
| USB 3.2 Gen 1 port | 4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps, 1 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
| Form Factor | 4U Rackmount |
| LED Indicators | HDD 1-24, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 176.15 × 481.04 × 672.02 mm |
| Power Supply Unit | 2 x 800W, 100-240V |
| Weight (Net) | 22.66 kg |
| Power Consumption/Operating Mode | 143.97 W |
| Fan | 4 x 92mm, 12VDC, Smart fan |
| Sound Level | 27.5 db(A) |
