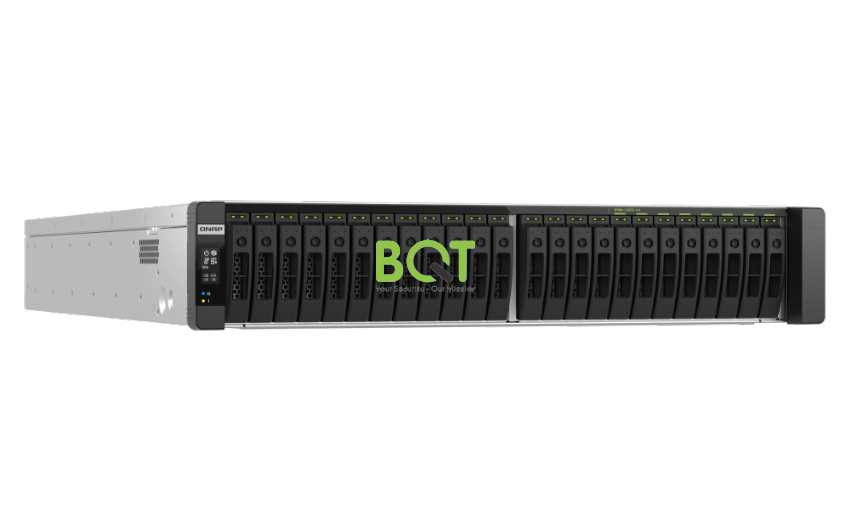

QNAP TDS-h2489FU-R2-4314-128G
QNAP TDS-h2489FU-R2-4314-128G
Thiết bị lưu trữ QNAP TDS-h2489FU-R2-4314-128G
CPU: 2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz
RAM: 128 GB RDIMM DDR4 ECC (8 x 16 GB)_Maximun: 1TB
HDD: 24 (16 x 2.5-inch U.2 PCIe NVMe + 8 x 2.5-inch U.2 PCIe NVMe/SATA 6Gbps)
Network: 4 x 2.5G + 2 x 25GbE SFP28 SmartNIC port
M.2 slot: 2
Power: 1200W PSU(x2), 100-240Vac
Thông tin chi tiết
Thiết bị lưu trữ QNAP TDS-h2489FU-R2-4314-128G
CPU: 2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz
RAM: 128 GB RDIMM DDR4 ECC (8 x 16 GB)_Maximun: 1TB
HDD: 24 (16 x 2.5-inch U.2 PCIe NVMe + 8 x 2.5-inch U.2 PCIe NVMe/SATA 6Gbps)
Network: 4 x 2.5G + 2 x 25GbE SFP28 SmartNIC port
M.2 slot: 2
Power: 1200W PSU(x2), 100-240Vac
Thông số chi tiết kỹ thuật:
| CPU | 2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | (AES-NI) |
| System Memory | 128 GB RDIMM DDR4 ECC (8 x 16 GB) |
| Maximum Memory | 1 TB (32 x 32 GB) |
| Memory Slot | 32 x RDIMM DDR4 ECC (16 x slots per socket) |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 24 (16 x 2.5-inch U.2 PCIe NVMe + 8 x 2.5-inch U.2 PCIe NVMe/SATA 6Gbps)
The system is shipped without SSD. |
| Drive Compatibility | 2.5-inch bays: 2.5-inch SATA solid state drives (#17-24) 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | 2 Slot 1: M.2 2280 NVMe PCIe Gen 3 x4 or SATA 6Gb/s Slot 2: M.2 2280 NVMe PCIe Gen 3 x2 or SATA 6Gb/s Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. |
| SSD Cache Acceleration Support | |
| SR-IOV | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (2.5G/1G/100M/10M) |
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) |
Only the 2.5GbE port |
| Jumbo Frame | |
| PCIe Slot | 4 Slot 1: PCIe Gen4 x16 or Gen4 x8* Slot 2: PCIe Gen4 x8 Slot 3: PCIe Gen4 x16 or Gen4 x8* Slot 4: PCIe Gen4 x8 *Slot 4 is preinstalled with a 25GbE network adapter. |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | Rackmount |
| LED Indicators | SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address |
| Buttons | Power, Reset, OLED |
| Dimensions (HxWxD) | 88.3 × 446.2 × 713.2 mm |
| Weight (Net) | 22.77 kg |
| Weight (Gross) | 27.55 kg |
| Operating Temperature | 0 - 35°C (32°F - 95°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 1200W PSU(x2), 100-240Vac |
