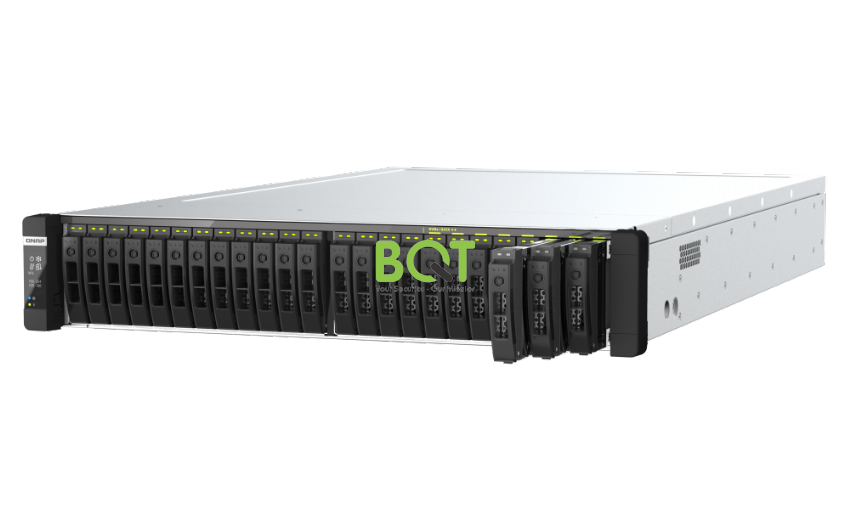

Thiết bị lưu trữ Qnap TDS-h2489FU-4314-1TB

24-Bay all-flash U.2 NVMe PCIe Gen4 dual-processor NAS, 2 x Intel Xeon Silver 4314 16C/32T processor (up to 3.4 GHz), 1TB RDIMM ECC DDR4 RAM, 4 x 2.5GbE LAN, 2 x 25GbE SFP28, iSCSI, RAID, PCIe Gen4 expansion slots, 1200W redundant power supply, without Rail Kit (RAIL-E03)

0911 344 440 - 0908 098 609

Thông tin chi tiết

Thiết bị lưu trữ Qnap TDS-h2489FU-4314-1TB

Thông số kỹ thuật:

CPU	2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz
CPU Architecture	64-bit x86
Encryption Engine	(AES-NI)
System Memory	1 TB RDIMM DDR4 ECC (32 x 32 GB)
Maximum Memory	1 TB (32 x 32 GB)
Memory Slot	32 x RDIMM DDR4 ECC (16 x slots per socket)
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	24 (16 x 2.5-inch U.2 PCIe NVMe + 8 x 2.5-inch U.2 PCIe NVMe/SATA 6Gbps) The system is shipped without SSD. For the SSD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility	2.5-inch bays: 2.5-inch SATA solid state drives (#17-24) 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives
Hot-swappable
M.2 Slot	2 Slot 1: M.2 2280 NVMe PCIe Gen 3 x4 or SATA 6Gb/s Slot 2: M.2 2280 NVMe PCIe Gen 3 x2 or SATA 6Gb/s Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	4 (2.5G/1G/100M/10M)
25 Gigabit Ethernet Port	2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)	Only the 2.5GbE port
Jumbo Frame
PCIe Slot	2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x8 Slot 2 is preinstalled with a 25GbE network adapter. *Slot 1 provides the width of PCIe Gen4 x16 when Slot 2 is not in use, and provides the width of PCIe Gen4 x8 when Slot 2 is in use. Card dimensions for PCIe slot 1：225 x 68.9 x 39.08 mm / 8.86 x 2.71 x 1.54 inches. Card dimensions for PCIe slot 2：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port	4
Form Factor	Rackmount
LED Indicators	SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address
Buttons	Power, Reset, OLED
Dimensions (HxWxD)	88.3 × 446.2 × 713.2 mm
Weight (Net)	22.77 kg
Weight (Gross)	27.55 kg
Operating Temperature	0 - 35°C (32°F - 95°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	1200W PSU(x2), 100-240Vac Max Wattage: 1200W@200-240Vac 1000W@100-127Vac
